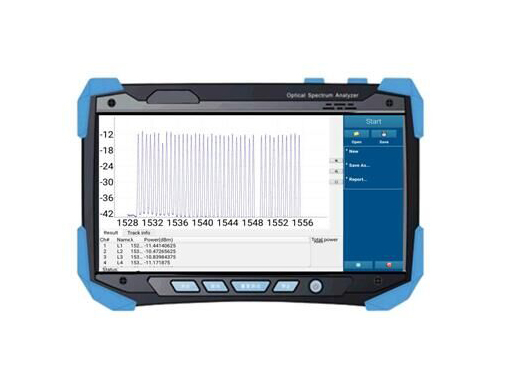

昆山宇芯亞光電經過多年研發 , 目前獨家推出DWDM 系統專用的手持式光譜分析儀 , 僅0.45公斤, 免除以往OSA 體積笨重 , 搬運困難 , 價格高昂等缺點。采用安卓系統接口 , 支持藍芽 , WIFI 及4G 。
應用范圍：
● 高速DWDM 網絡波長特性測試
● 城域網及接入網功能確認
● 光纖到戶網絡安裝維護與測試
● 光纖鋪設與現場測試
● 激光與光源系統測試
產品特色：
● 輕薄小 ,僅0.48公斤, 易于攜帶 , 方便現場使用
● 支持藍芽 , WIFI 及4G .
● 7吋觸控面板 , Android 系統
● DWDM 各路波長及OSNR 量測
o 1525nm-1570nm for ITU 96路
o 10G/40G/100G/400G 格式
o 高分辨率
● 快速測試 , 測試時間僅需1秒
產品優勢：
● 安卓接口 , 可拆卸式主機 , 適用于各式環境與場地
● 支持藍芽 , WIFI 及4G , 云端存儲
● 7吋觸控面板 , Android 系統
● 可以預寫程序執行實時間監控及量測
● 使用者可以輕易使用及制作Apps , 以滿足其特殊應用
Performance Specifications:
| Parameters | Unit | Min | Type | Max | Note |
| Operation Wavelength Range | nm | 1525~1570nm | See the channel table | ||
| Channel spacing | Ghz | 37.5G,50G and 100G | Max 96ch DWDM test. | ||
| Sensitivity to modulation format | 10G/40G/100G/400G | ||||
| Wavelength Accuracy | nm | 0.05 | |||
| Wavelength Repeatability | pm | 10 | |||
| Wavelength Resolution | pm | 1 | |||
| OSNR range | dB | 15 | 25 | ||
| OSNR accuracy | dB | 1.5 | |||
| Channel Power Range | dBm | -40 | -5 | ||
| Adjacent channel power Divergence | dB | 6 | For 40G /100G,or Mixed(10G/40G/100G) | ||
| 10 | For 2.5G/5G/ 10G | ||||
| Non-Adjacent channel power | dB | 10 | |||
| Power Detect Accuracy | dB | ±0.5 | 2.5G,5G,10G,or 40G,100G,or 10G&40G&100G | ||
| ±0.5 | Two type of mixed or any type of mixed | ||||
| Relative Power Accuracy | dB | 0.5 | 2.5G,5G,10G,or40G,100G,or 2.5G&5G&10G&40G&100G mixed | ||
| Noise power range | dBm | -55 | -40 | ||
| Noise power Accuracy | dB | ±3 | |||
| repeatability | dB | ±0.3 | |||
| Scan time - all channels | s | 1 | |||
| Return Loss | dB | -30 | |||
| Power Consumption | W | 5 | |||
General Specifications :
DisplayAndroid-based smart 7 inch touch screen display
Optical Interface
Optical connector interchangeable from BN2150/00.xx range
Power Supply
Input : AC 100~240V 50Hz/Output：DC12V 2A
Electromagnetic Compatibility
IEC61326 CE Conformance
Calibration
Suggested calibration interval 1 years
Temperature Range
Operation 10oC ~ +50oC
Storage -40oC ~ +80oC
Dimension and Weight
Dimension 205 x 120x 55mm
