Applications :
PLC Splitter
AWG
VOA
WSS
Features:
High Quality V Groove
Excellent Core Pitches
PCT Tested
2ch ~ 128ch available

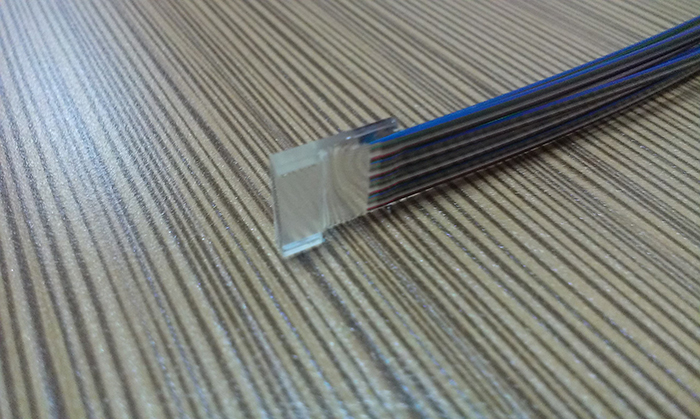

| PLC Fiber Array ( FA ) Specifications | |||||||||
| Type | Material | Pitch | Fiber Type | FA Size (mm) | Fiber Length | Fiber Length | Polishing Angle | ||
| Length | Width | Height | |||||||
| 2 CH | Quartz | 250um | G657A | 10.0 | 2.5 | 2.5 | 1.2 | 2.2 | 8.0 |
| 4 CH | 250um | 10.0 | 2.5 | 2.5 | 1.2 | 2.2 | 8.0 | ||
| 8 CH | 250um | 12.0 | 2.5 | 2.5 | 1.2 | 2.2 | 8.0 | ||
| 8 CH | 127um | 12.0 | 2.5 | 2.5 | 1.2 | 2.2 | 8.0 | ||
| 16 CH | 127um | 12.0 | 3.5 | 2.5 | 1.2 | 2.2 | 8.0 | ||
| 32 CH | 127um | 12.0 | 5.7 | 2.5 | 1.2 | 2.2 | 8.0 | ||
| 64 CH | 127um | 12.0 | 9.8 | 2.5 | 1.2 | 2.2 | 8.0 | ||
| 96 CH | 127um | 14.0 | 15 | 2.5 | 1.2 | 2.2 | 8.0 | ||
| 128 CH | 127um | 20.0 | 15 | 2.5 | 1.2 | 2.2 | 8.0 | ||
